Architecture¶

System Overview¶

Component	Detail
Mobile Client	Flutter Android APK (AVD Emulator)
Backend API	Node.js + Express, hosted on Railway
Communication	HTTPS with SSL pinning
Authentication	JWT-based

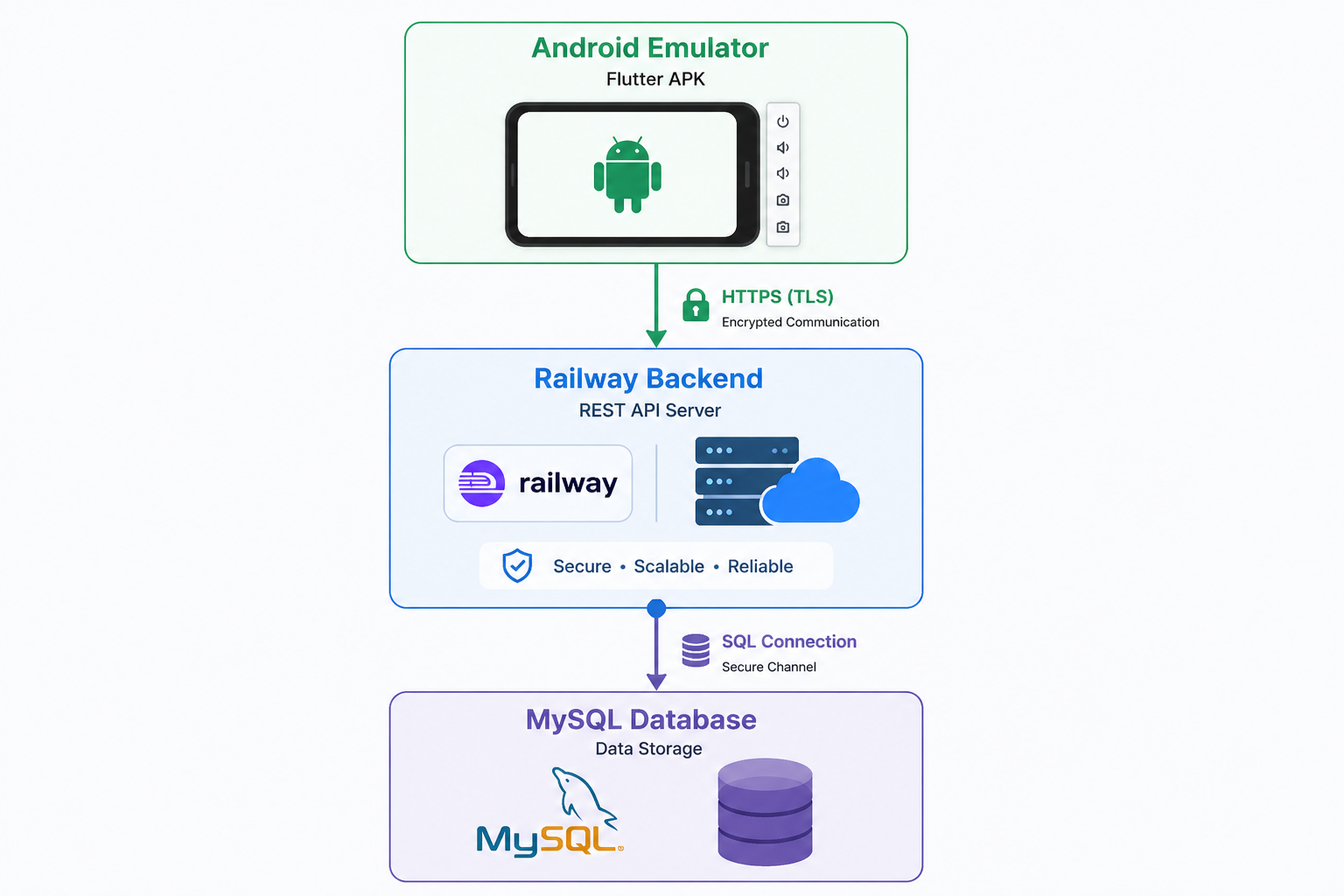

System Architecture

Application Flow¶

User submits credentials (mobile app)
    ↓
Backend validates and issues JWT          ← JWT contains role claim — never re-validated server-side
    ↓
JWT stored in SharedPreferences           ← plaintext, readable on rooted device
    ↓
Each request sent with Authorization header
    ↓
Backend validates token and returns response  ← token presence checked, resource ownership not checked

Deployment & Testing Setup¶

Component	Configuration
Backend	Railway — public HTTPS endpoint
Mobile App	Installed on Android Emulator (AVD), rooted via Magisk
Proxy	Burp Suite — traffic redirected via iptables
Prerequisite	SSL pinning bypass required before interception is possible

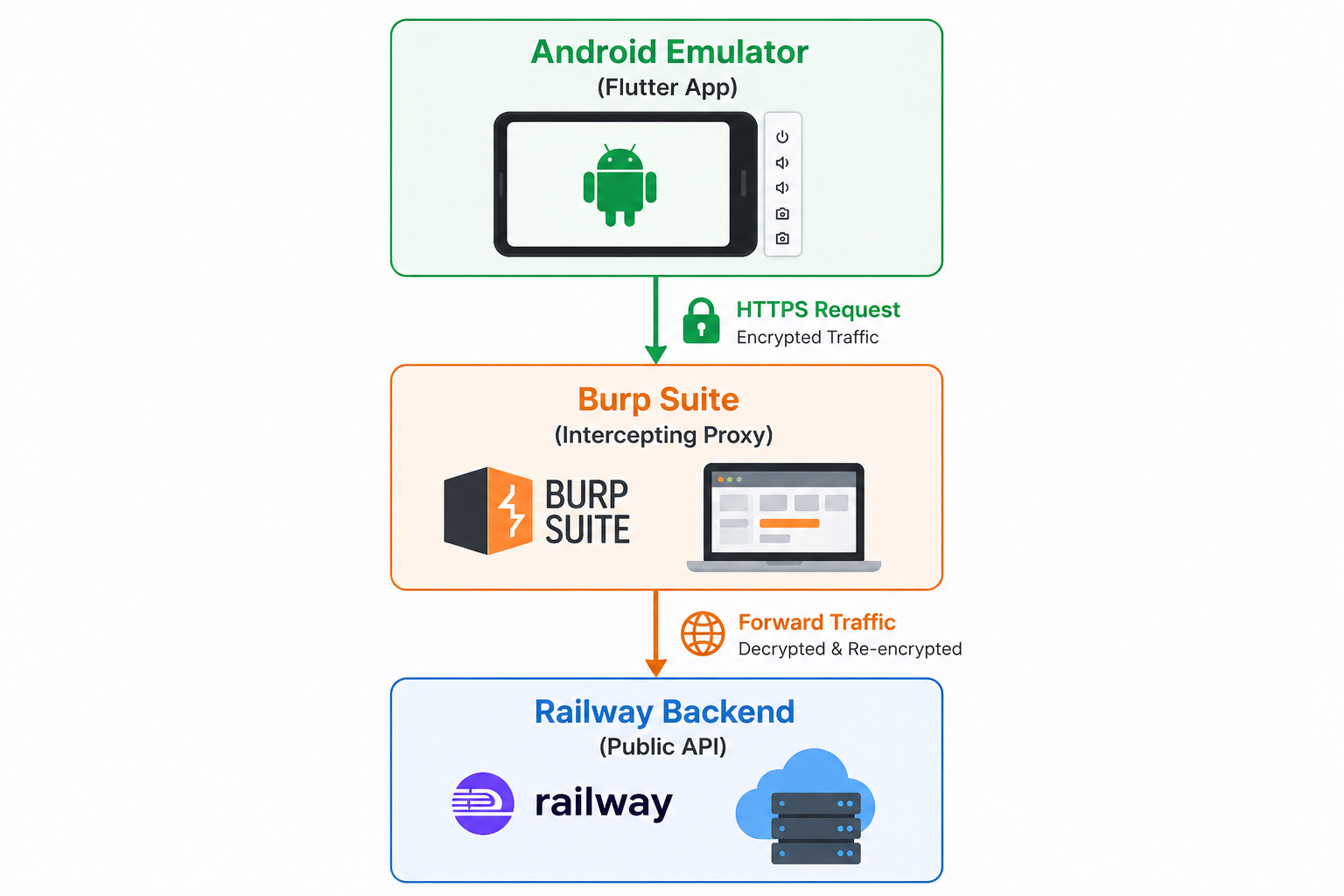

Testing Setup

Trust Boundary¶

The backend is the only component that can be trusted — it is the only part of the system the attacker does not fully control. The mobile client is entirely attacker-controlled: the binary can be decompiled, runtime behavior can be modified, and network traffic can be intercepted and replayed.

In this application, the backend does not behave accordingly. It validates that a JWT is present and correctly signed, but does not check whether the requesting user is authorized to access the specific resource they are requesting. It accepts a role field on the update endpoint without verifying whether the user has the authority to change it. It uses a static shared secret for admin operations that is hardcoded in the client binary.

Every significant finding in this lab is a consequence of the backend treating the client as a trusted participant in authorization decisions it should own entirely.
